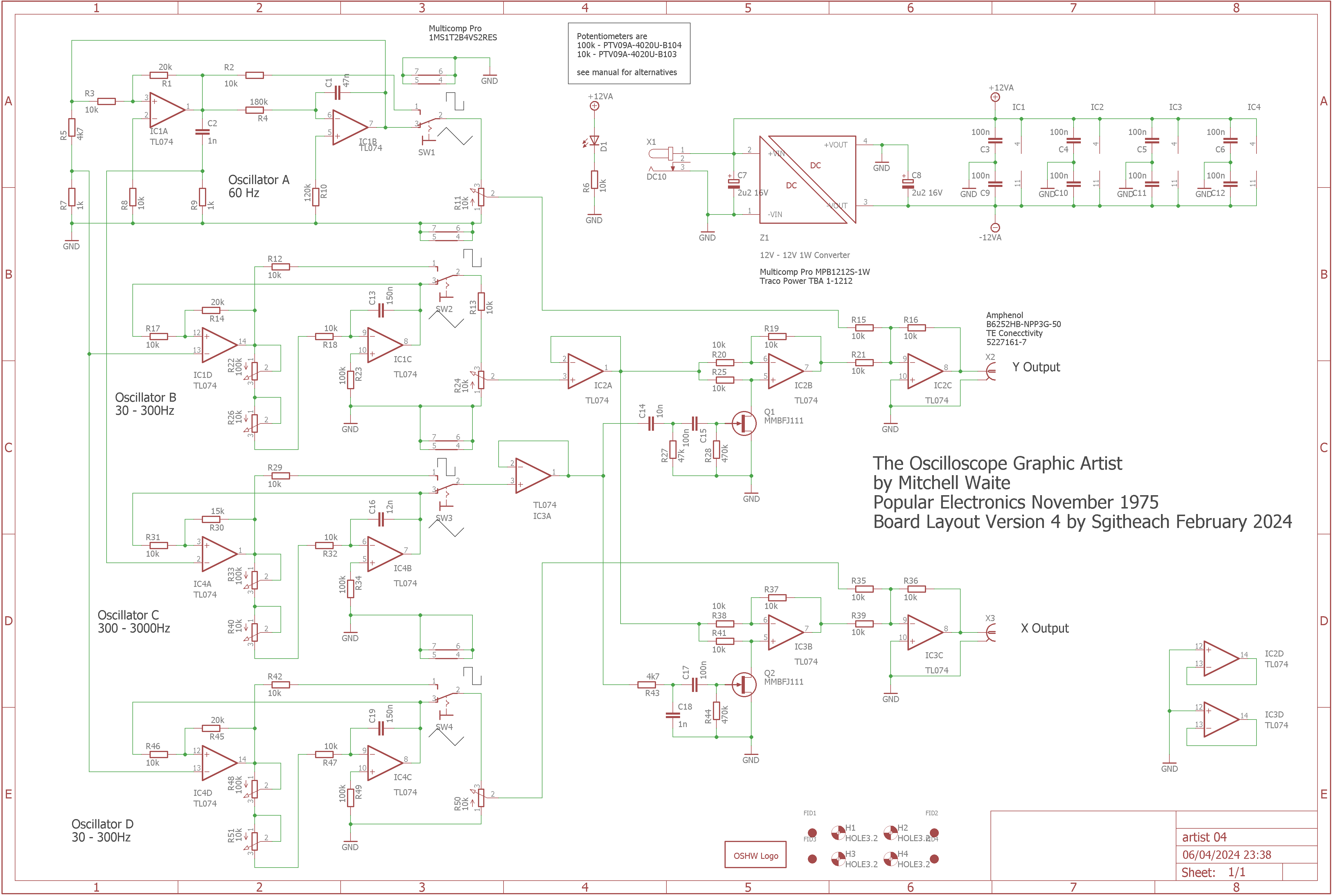

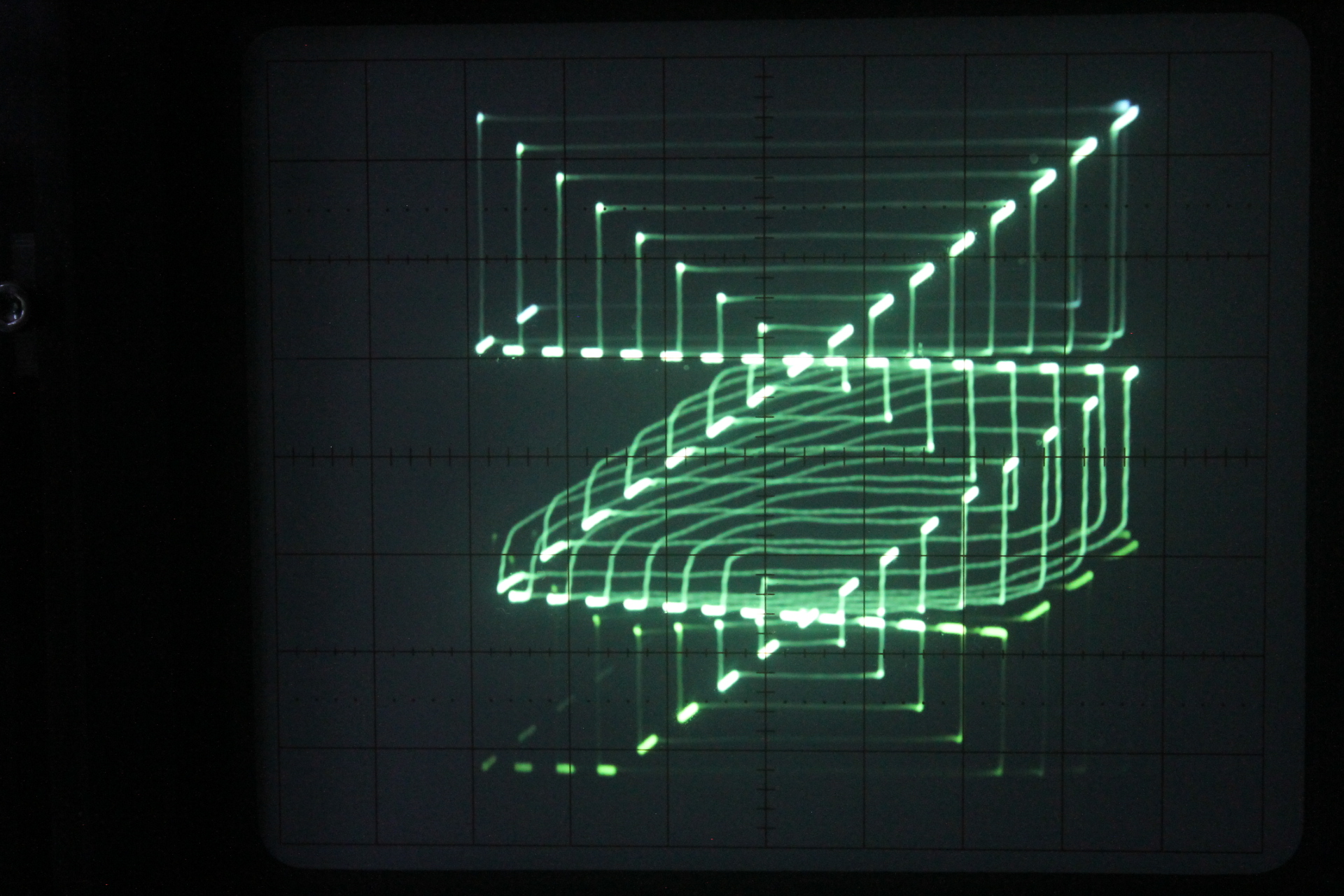

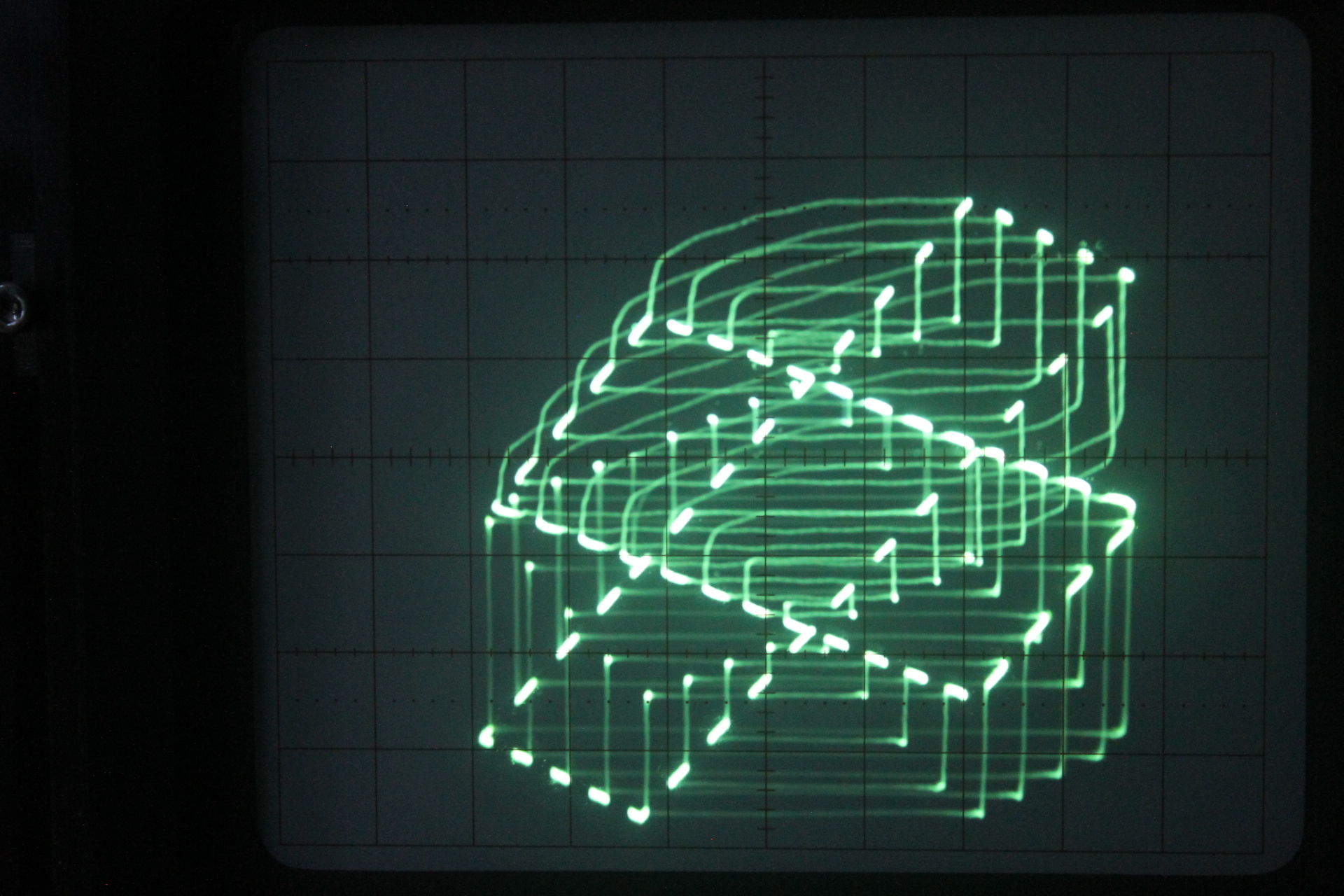

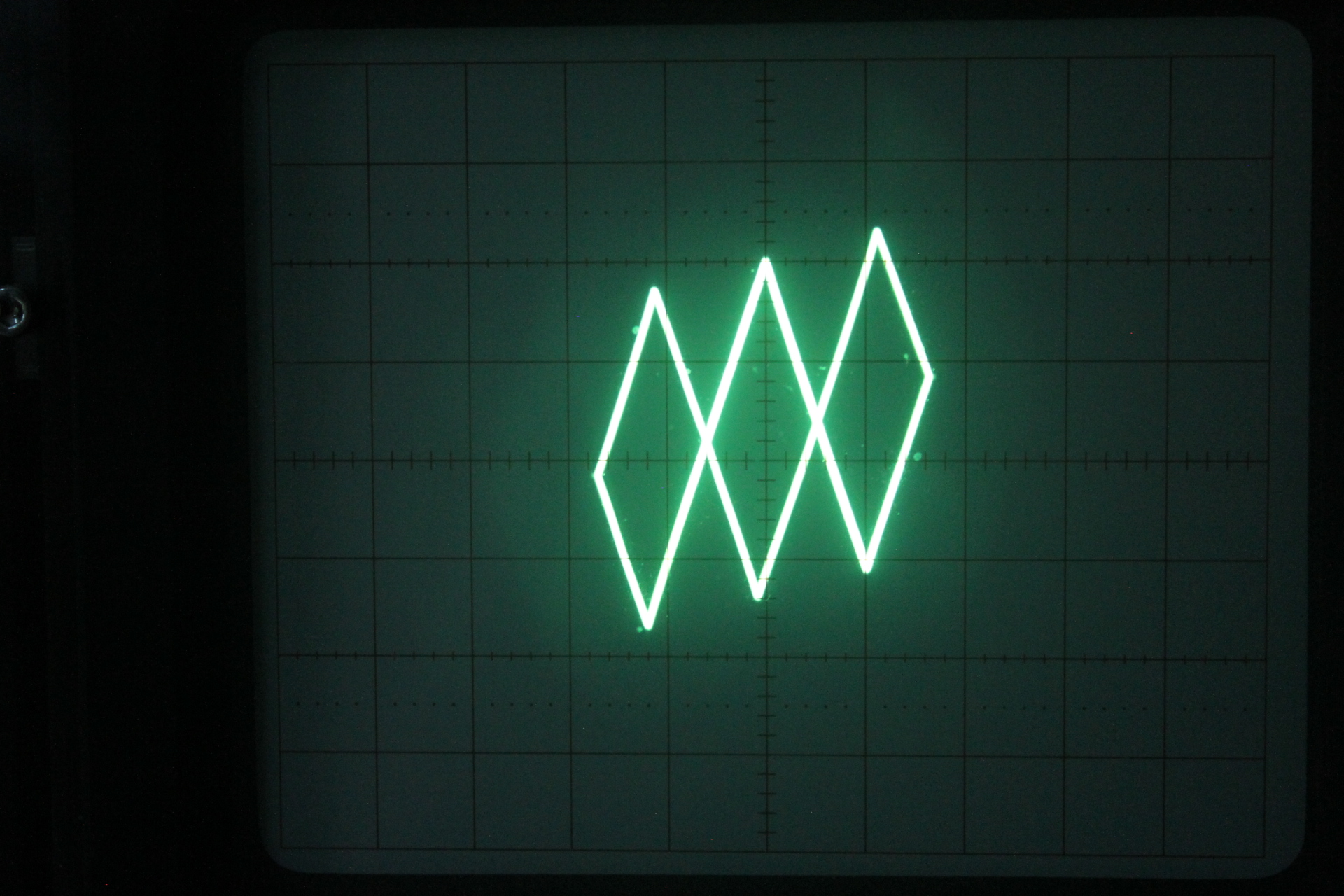

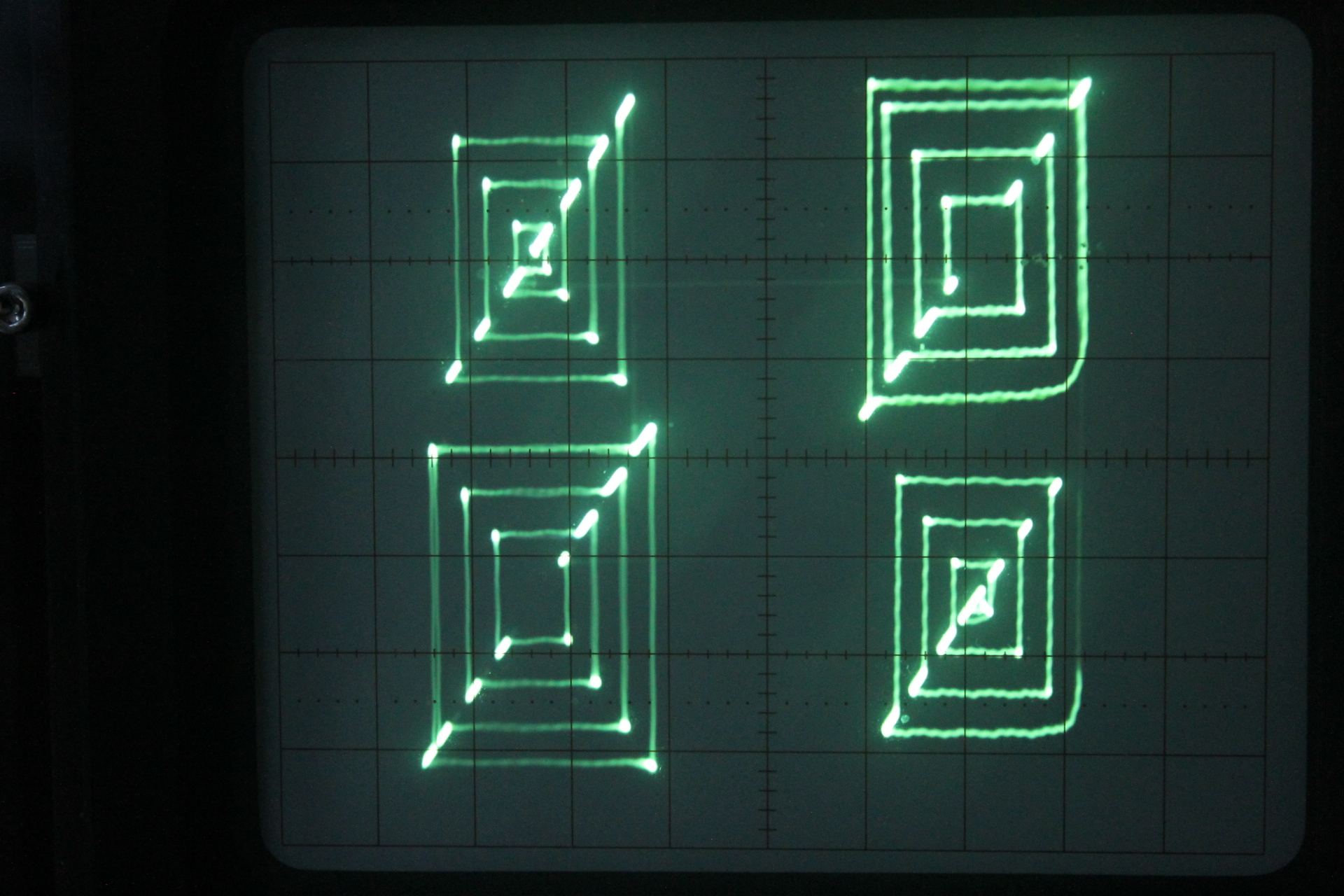

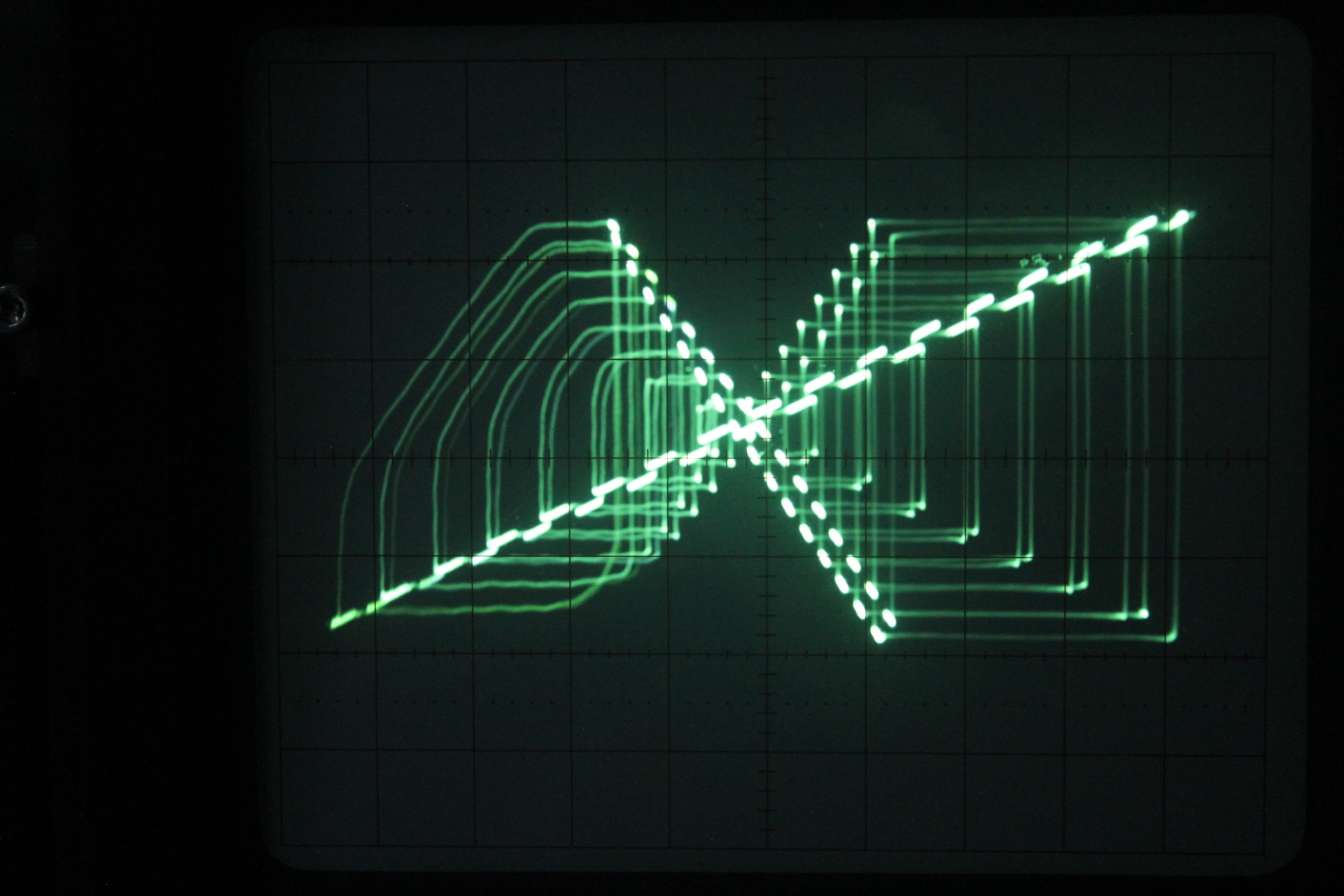

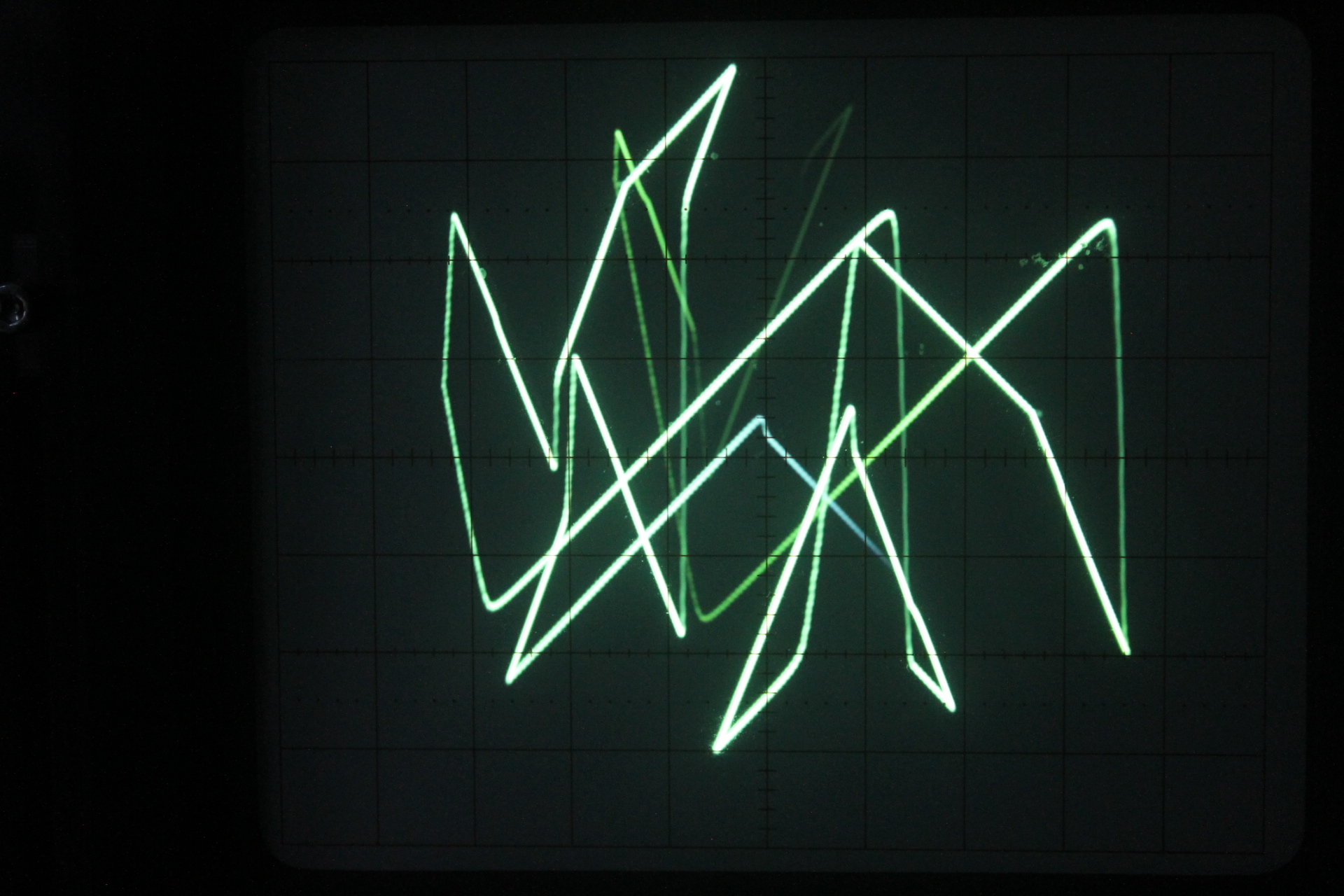

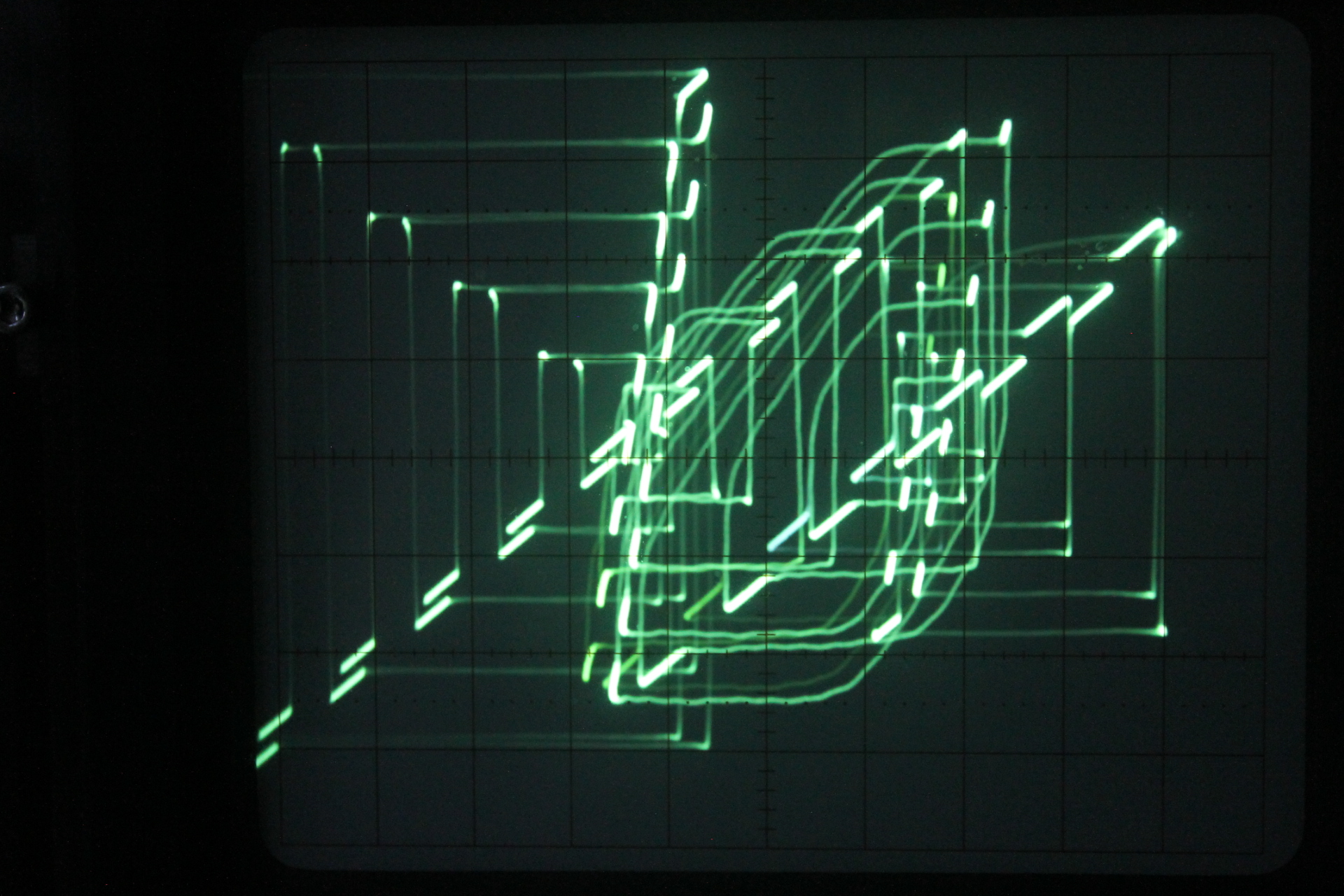

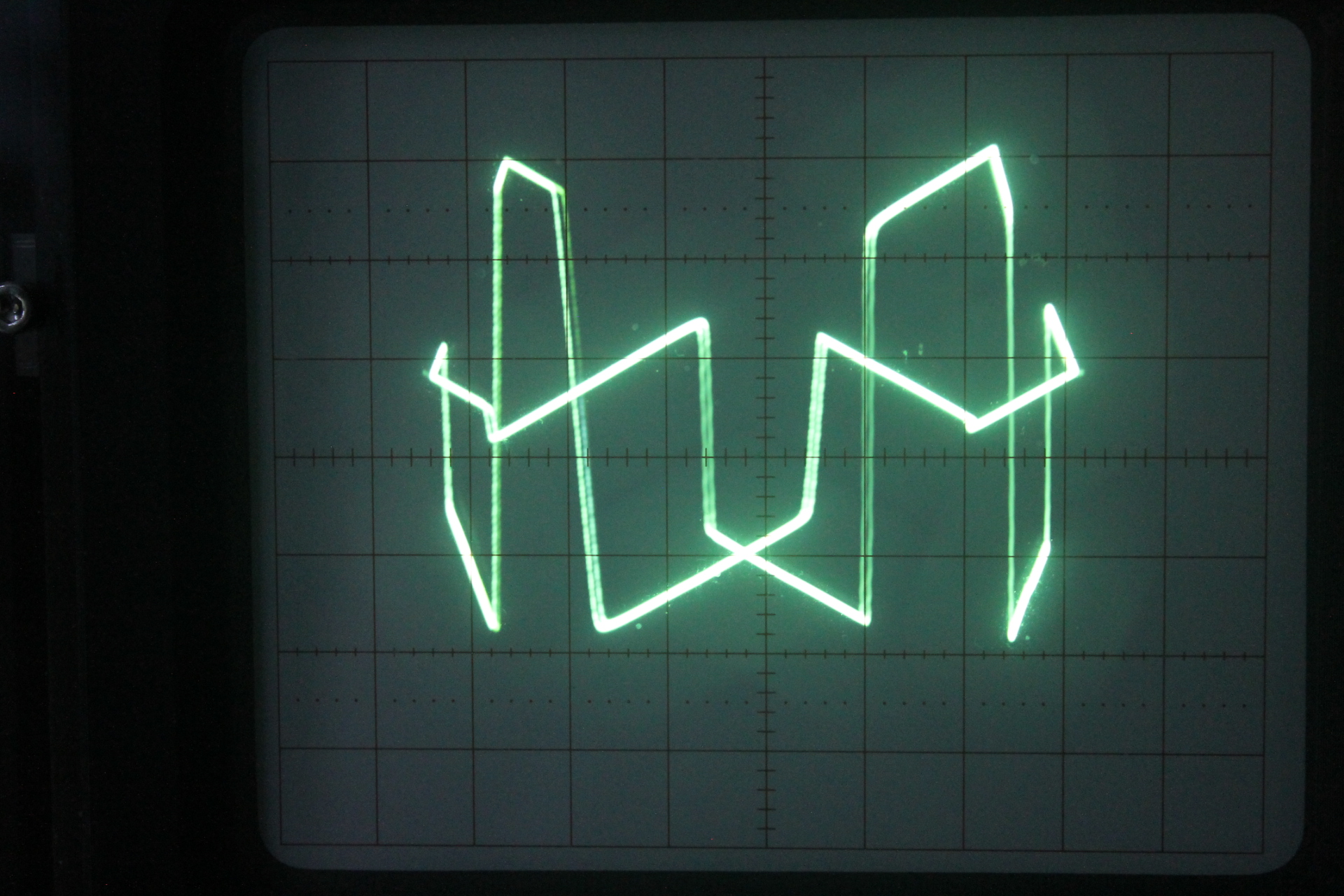

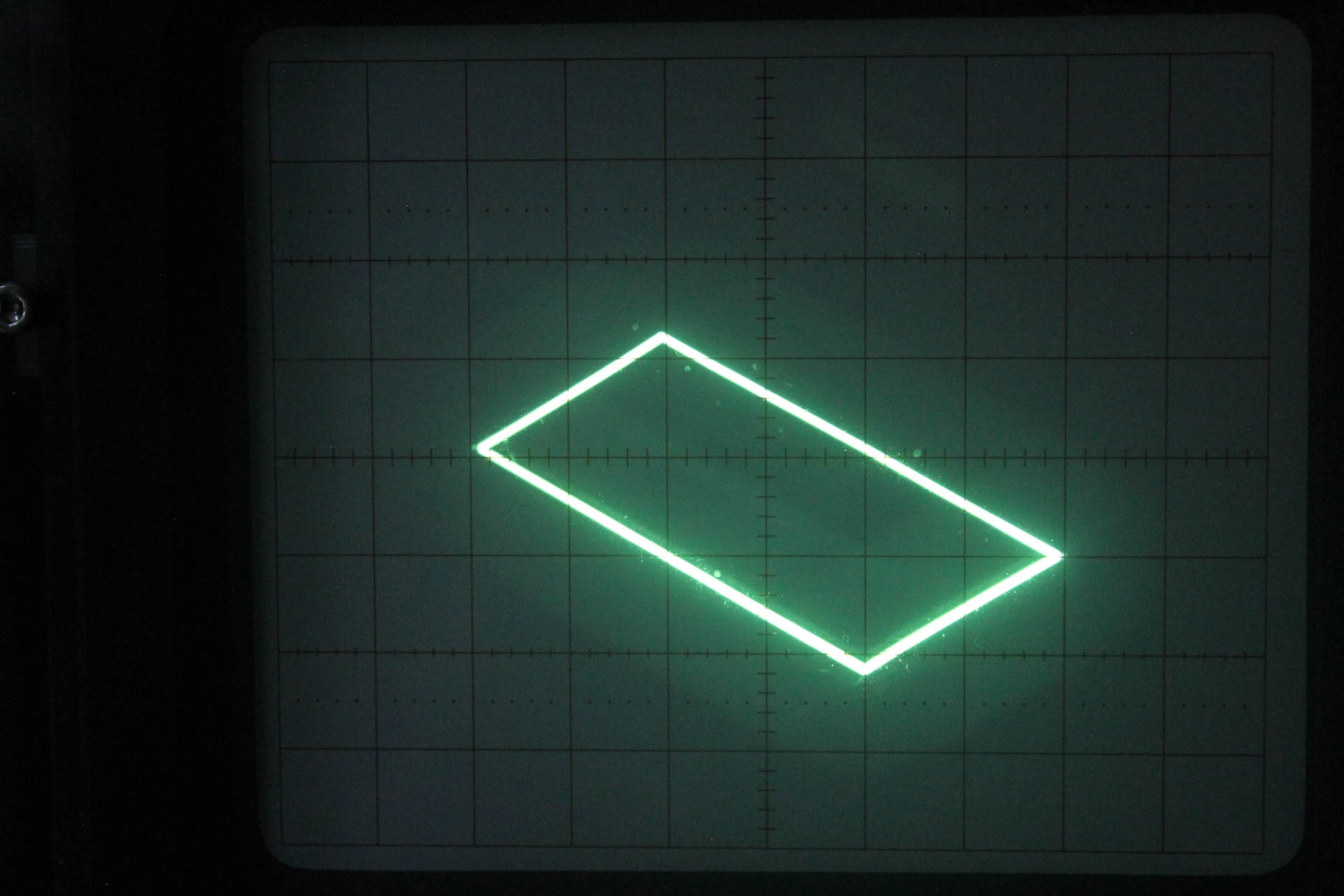

This is my version of the Oscilloscope Artist by Mitchell Waite published Popular Electronics November 1975. There is a lot of information on how it works in the article which you will find on my public drop box - see below.
Documentation
You should look in the "/ CRT Projects / Artist" folder.
I have tweaked the design slightly:
- Fine and coarse frequency controls

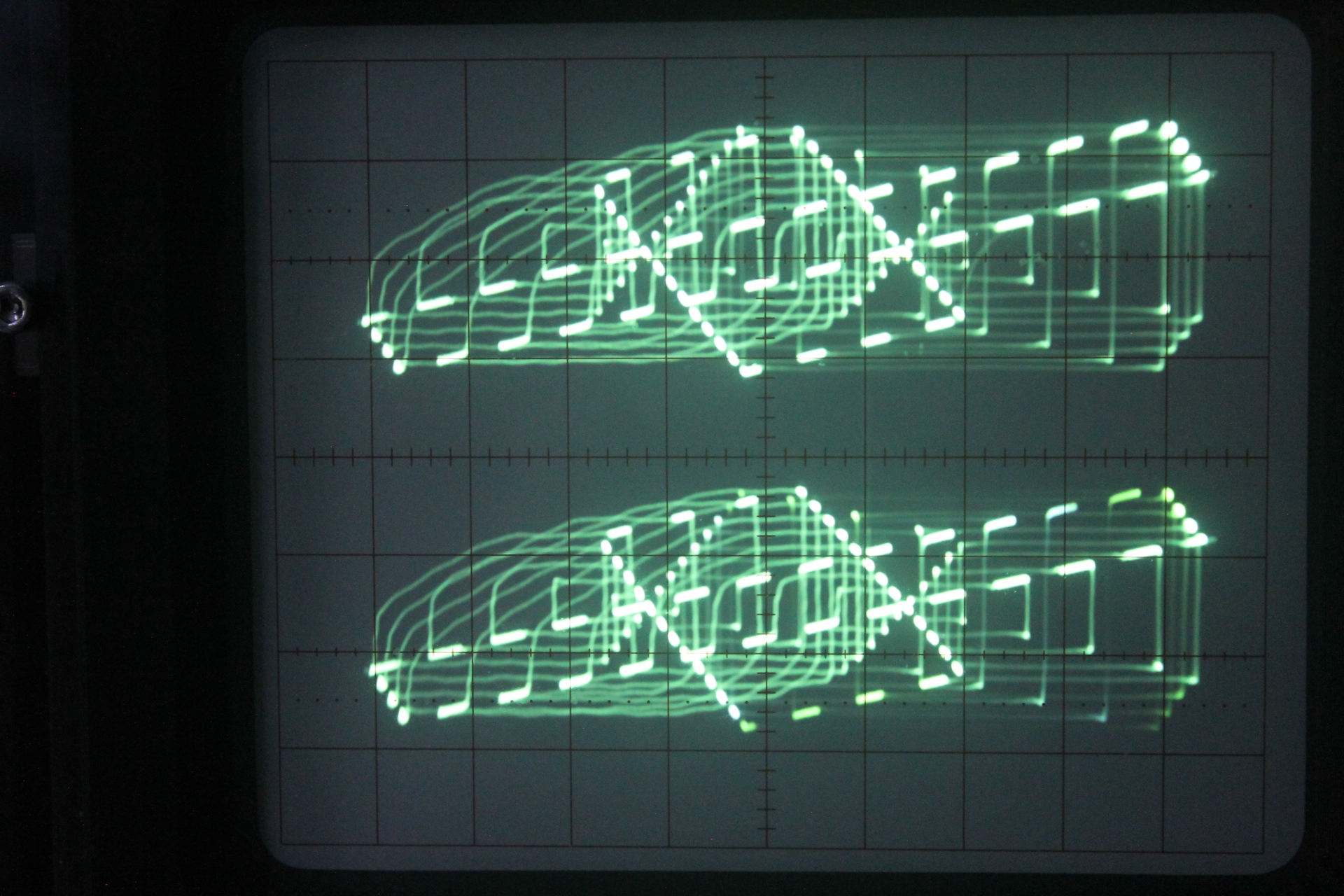

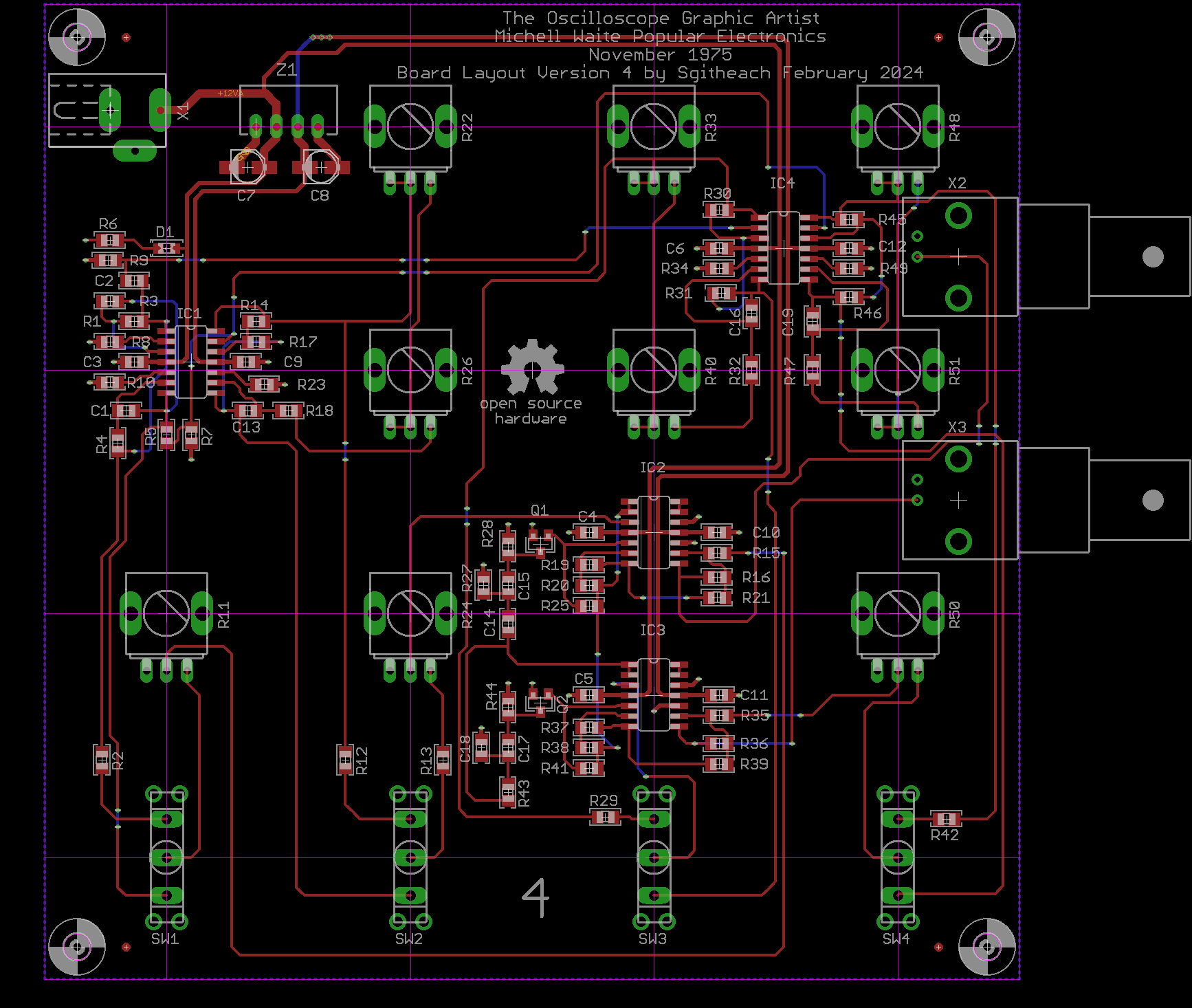

- Double sided PCB
- SMD parts
- Single 12V DC supply required

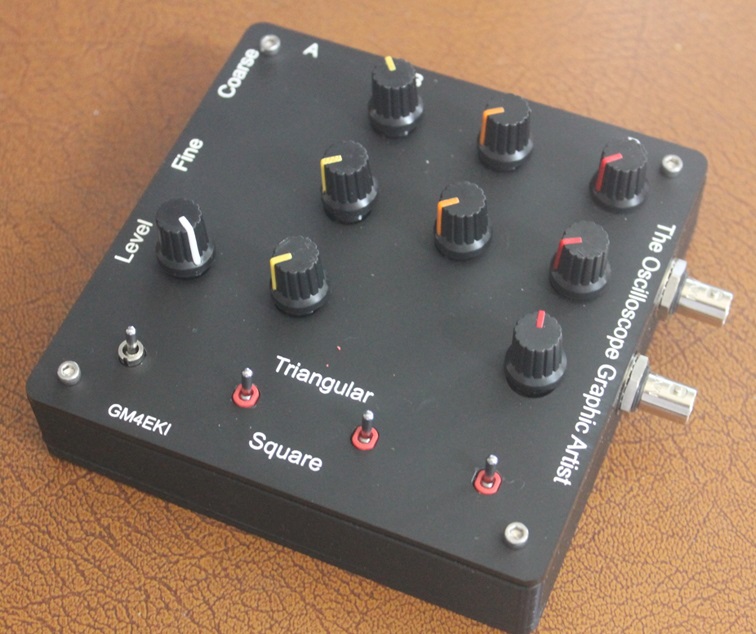

On the drop box you will find the simple 3D printed box and the aluminium front panel design file which can be used to order from Front Panel Express or Schaeffer AG. You can, of course, start with my design and modify it as you like!
For Sale

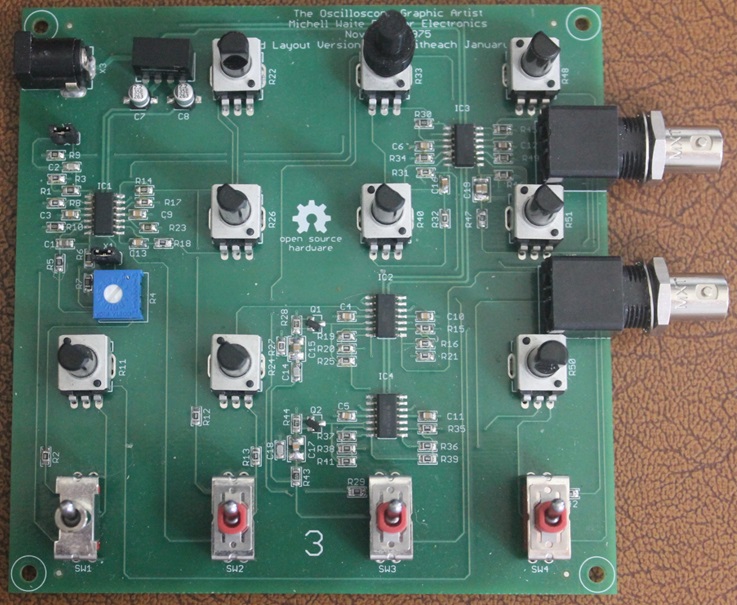

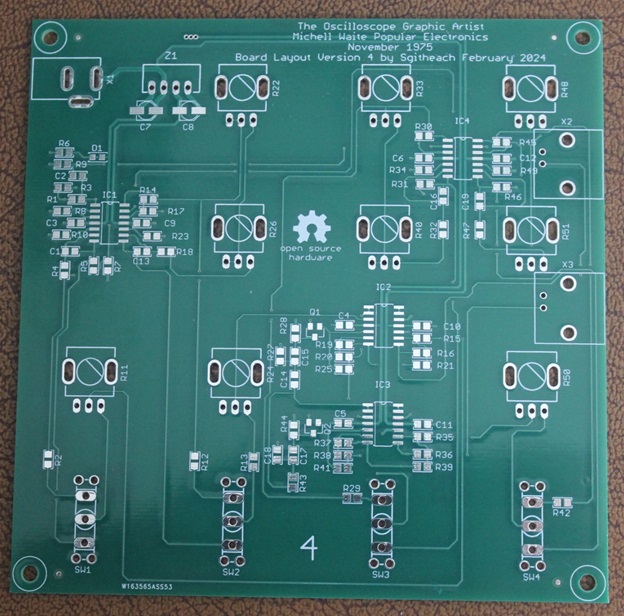

The Artist PCB can be purchased as a bare board (you will need to able to solder the 0805 SMD parts and SO14 IC packages). No kit is available but all the parts are easily available from Farnell, Mouser, DigiKey etc.
The price of the PCB is here.
